USB ULTRA VSR Broadcast

In keeping with our aim of creating essential audio interfaces, ARX is excited to present the ARX USB Ultra VSR Broadcast - a true 24 bit High Resolution Plug and Play USB 2 channel play and record digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding.

Analog style headroom - Exclusive to the Ultra VSR Broadcast

The USB Ultra I/O VSR 'Broadcast' features Analog Style Headroom when recording in the digital domain, with Analog 0dB In converting to -12dB, FS Digital. The -12dB Digital signal reverts to 0dB Analog Out, giving you the best of both the analogue and digital worlds.

With five selectable sample rates: 44.1 KHz, 48 KHz, 88.2KHz, 96KHz or 192 KHz, 24 bit High Resolution and USB 2 Plug and Play performance. Full transformer balanced Inputs and Outputs provide the isolation required to eliminate earth loops / ground hum and other extraneous noise and distortion

Plug and Play

The USB ULTRA VSR Broadcast installs as a fully compatible generic USB audio device, requiring no special driver program installation on Windows 10 or Mac OSX

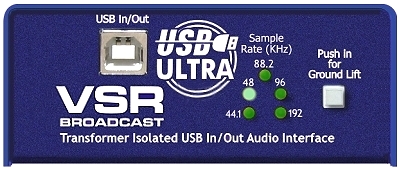

On the Front panel there is a standard Type B USB connector, as well as a ground lift switch and Status LEDs indicating the sample rate selected or available.

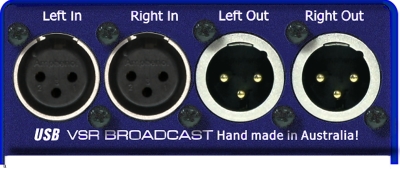

The Rear panel has Left and Right transformer balanced analog Amphenol XLR Input and output connectors that connect to any standard balanced analog inputs and outputs.

The USB ULTRA VSR Broadcast is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber base pad. It is ideal for interfacing USB equipped computers (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems.

Optional features include an optional bracket kit for under-table mounting.

The USB ULTRA VSR Broadcast ships with a premium quality USB-A to USB-B cable, and is hand made in Australia.


USB ULTRA VSR Broadcast Technical Specifications
Connector : USB type B port

Codec : Hi Resolution 24 bit 192 KHz

Sample Rate : Software selectable : 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz and 192 KHz

Input Impedance : 10 KOhms Transformer Balanced

Output Impedance : 300 Ohms Transformer Balanced

Maximum Input Level : Nominal 0 dB

Maximum Output Level : Nominal 0 dB

Input/Output Noise :

USB - System dependent
ISO transformer - Enviroment sensitive

Frequency Response : 20 - 20 KHz ± 0.5 dB

Power Consumption : via USB Port - typically 0.8W

Optimal storage temperature range 0'C - 40'C

Operating temperature range 0'C - 50'C

Input Connectors

Channel 1 / Left and Channel 2 / Right 2 x Female Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch

Output Connectors

Channel 1 / Left and Channel 2 / Right 2 x Male Amphenol XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 screen/shield via ground Lift switch

Construction :

All-steel texture powder coated chassis, fibreglass PCB, epoxy printing,

USB Ultra VSR 'Broadcast' chassis grounded via USB connection

Slip-resistant rubber base pad.

Package includes a premium quality USB-A to USB-B cable



System Requirements

  • Windows 10
  • Mac running OS X or later
  • Audio software installed

USB ULTRA I/O Schematic Diagram



Front panel LED indicates which sample rate has been selected
